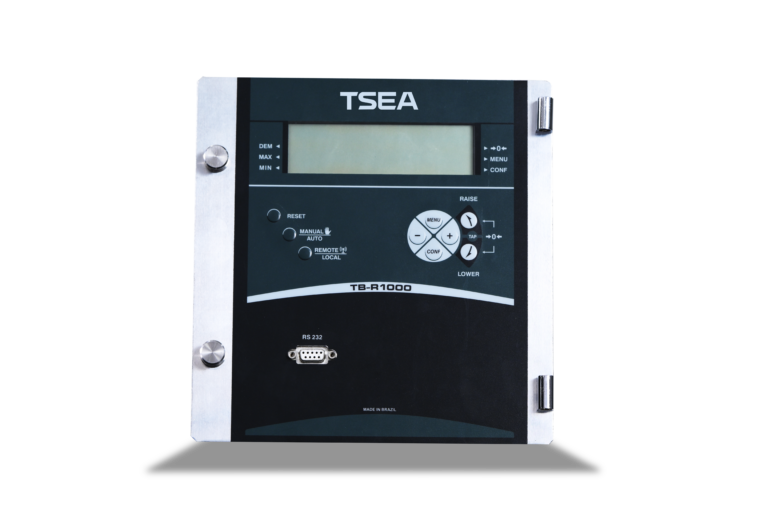

TB-R1000 Control
Role of the TB-R1000 in Voltage Regulator Operation
The TB-R1000 manages voltage regulator operation through control and monitoring functions.
- Local and Remote Operation
Field access or supervisory system control - Command Logic and Alarms
Interlocks and event signaling to prevent improper operation - Parameter Monitoring
Measurement of voltage, current, tap position, and regulator status - Automation Integration
Compatibility with protection and supervisory systems
Real-Time Monitoring and Control
The TB-R1000 supports voltage regulation through continuous monitoring and parameter control.
- Data Logging
Voltage, current, events, and historical records - Incremental Control
Adjustment to maintain voltage within defined limits - Alarms and Diagnostics
Detection of abnormal conditions and support for maintenance planning - Local Interface
Graphical display and command access for controlled operation
Integration with Control and Supervision Systems
The TB-R1000 supports integration with SCADA and automation platforms for centralized supervision.
- Supported Protocols
DNP3, IEC 60870-5-104, Modbus - Communication Interfaces
Ethernet, serial, or radio, according to project requirements - Protection Integration
Compatibility with protection relays and electrical safety systems - Remote Supervision
Enables remote operation and real-time performance monitoring
Technical Differentiators and Operational Reliability
- Continuous monitoring and controlled voltage regulation
- Integration with SCADA and automation platforms
- Data logging and diagnostic functions supporting maintenance planning
- Defined command logic and operational safeguards
- Engineering-led technical support throughout the asset lifecycle
Technical Specifications
- Operating Modes:
Automatic, manual, local, and remote - Communication Protocols:
DNP3
IEC 60870-5-104
Modbus - Interface:
Local graphical display, keypad, and status LEDs - Data Logging:
Event history, alarms, and electrical parameters - Power Supply:
According to project specifications - Applicable Standards:
Designed in accordance with applicable IEC and IEEE standards
Frequently Asked Questions
Is the TB-R1000 compatible with SCADA systems?
Yes. It supports standard communication protocols, including DNP3, IEC 60870-5-104, and Modbus, enabling integration with supervisory systems.
Frequently Asked Questions
Is the TB-R1000 compatible with SCADA systems?
Yes. It supports standard communication protocols, including DNP3, IEC 60870-5-104, and Modbus, enabling integration with supervisory systems.
Can it operate remotely?
Yes. It supports remote operation and real-time monitoring through compatible automation platforms.
Does it comply with international standards?
Yes. It is designed in accordance with applicable IEC and IEEE standards.
