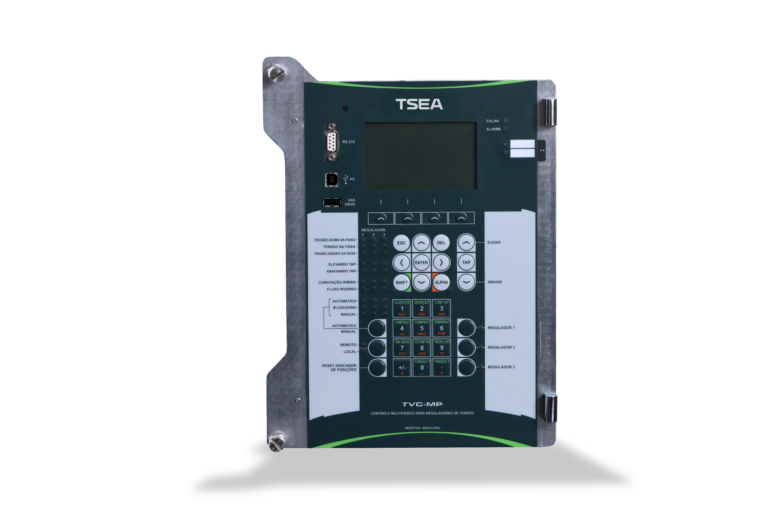

TVC-MP Control

The TVC-MP is a control system for monitoring and regulating single-phase voltage regulators in distribution and transmission networks. Developed with in-house technology and designed in accordance with IEC and IEEE standards, it supports local and remote operation, electrical parameter logging, and integration with protection, supervision, and SCADA systems. Suited for utilities and substations requiring controlled voltage regulation and high operational availability.

Role of TVC-MP Control in Voltage Regulator Operation

The TVC-MP Control manages and monitors voltage regulators, ensuring precise adjustments and stable operation.

Remote and Local Control
Flexibility for field operation or supervisory systems.
Continuous Monitoring
Real-time readings of voltage, current, and regulator status.
Secure Commands
Interlock logic and alarms to prevent failures.
Automation Integration
SCADA-compatible for centralized supervision.

Monitoring and Adjustment of Electrical Parameters

The TVC-MP supports voltage regulation through continuous measurement and control functions:

Parameter Logging
Voltage, current, tap position, events, and history.
Precise Adjustment
Incremental control to maintain levels within the specified range.
Alarms & Diagnostics
Detection of abnormal conditions and support for preventive maintenance.
User-Friendly Interface
Intuitive display and simplified commands for safe operation.

Integration with Control and Supervision Systems

The TVC-MP supports integration with SCADA and automation platforms for centralized supervision.

Supported Protocols
DNP3, IEC 60870-5-104, Modbus, among others
Communication Interfaces
Ethernet, serial, or radio, according to project requirements
Protection Integration
Compatibility with protection relays and electrical safety systems
Remote Supervision
Enables remote operation and real-time performance monitoring

Technical Differentiators and Operational Reliability

Precise monitoring and control of voltage regulators.
Full integration with SCADA and automation systems.
Compliance with IEC and IEEE standards.
User-friendly interface and secure operation.
Specialized technical support throughout the lifecycle.

Technical Specifications

Operating Modes:
Automatic, manual, local, and remote
Communication Protocols:
DNP3
IEC 60870-5-104
Modbus
Interface:
Local graphical display, keypad, and status LEDs
Data Logging:
Event history, alarms, and electrical parameters
Power Supply:
According to project specifications
Applicable Standards:
Designed in accordance with applicable IEC and IEEE standards

Frequently Asked Questions

Is the TVC-MP compatible with SCADA systems?

Yes. It supports standard communication protocols, including DNP3, IEC 60870-5-104, and Modbus, enabling integration with supervisory systems.

Frequently Asked Questions

Is the TVC-MP compatible with SCADA systems?

Yes. It supports standard communication protocols, including DNP3, IEC 60870-5-104, and Modbus, enabling integration with supervisory systems.

Does the TVC-MP comply with international standards?

Yes. It is designed in accordance with applicable IEC and IEEE standards.

What applications is the TVC-MP intended for?

It is designed for voltage regulators in medium-voltage distribution networks, substations, and grid automation projects.
